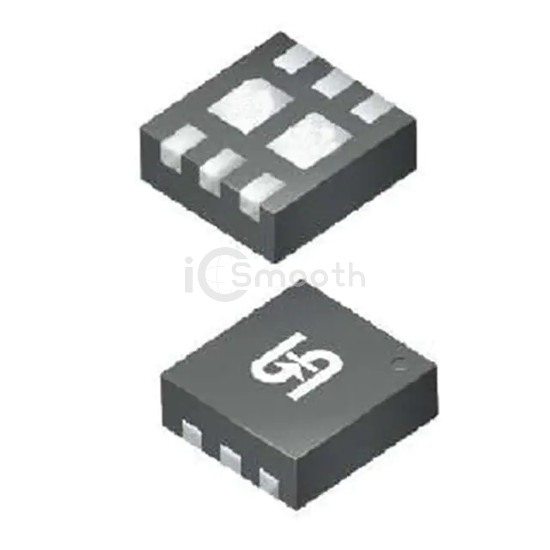

Name: TSM301K12CQ RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM301K12CQ RFG
Price: 0.86 USD
Availability: InStock

REF: TSM301K12CQ RFG Taiwan Semiconductor Corporation

TSM301K12CQ RFG

Taiwan Semiconductor Corporation

MOSFET P-CH 20V 4.5A 6TDFN

TSM301K12CQ RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CH 20V 4.5A 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,594

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	94mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id	500mV @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	4.5 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	5.2 pF @ 6 V
FET Feature	-
Power Dissipation (Max)	6.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-TDFN (2x2)
Package / Case	6-VDFN Exposed Pad
