Name: TSM2N7000KCT B0G
Brand: Taiwan Semiconductor Corporation
SKU: TSM2N7000KCT B0G
Availability: InStock

REF: TSM2N7000KCT B0G Taiwan Semiconductor Corporation

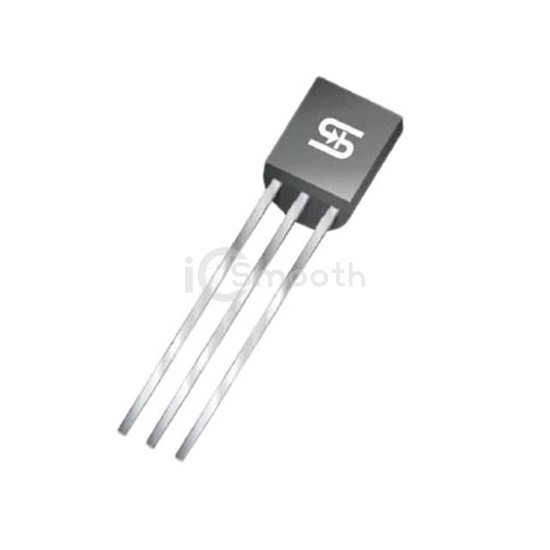

TSM2N7000KCT B0G

Taiwan Semiconductor Corporation

MOSFET N-CHANNEL 60V 300MA TO92

TSM2N7000KCT B0G is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 60V 300MA TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA).

Datasheet Request a Quote

In Stock: 9,625

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	5Ohm @ 100mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.4 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	60 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	400mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-92
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
