Name: TSM2N60SCW RPG
Brand: Taiwan Semiconductor Corporation
SKU: TSM2N60SCW RPG
Price: 1.59 USD
Availability: InStock

REF: TSM2N60SCW RPG Taiwan Semiconductor Corporation

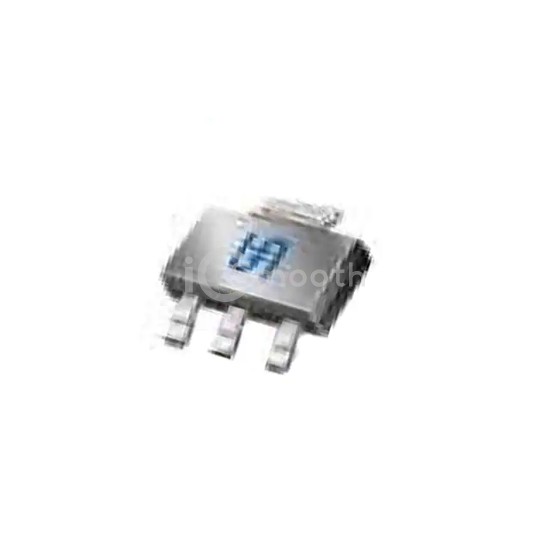

TSM2N60SCW RPG

Taiwan Semiconductor Corporation

MOSFET N-CH 600V 600MA SOT223

TSM2N60SCW RPG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 600V 600MA SOT223. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 669

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	600mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	5Ohm @ 600mA, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	435 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
