TSM260P02CX6 RFG

In Stock: 3,495

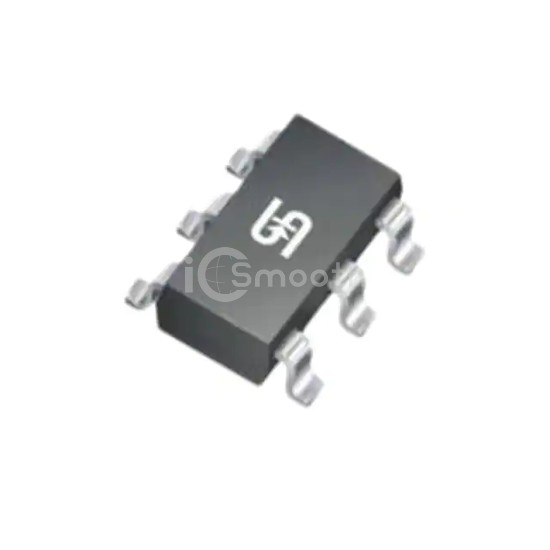

TSM260P02CX6 RFG - Taiwan Semiconductor Corporation - Transistors - FETs, MOSFETs - Single
REF: TSM260P02CX6 RFG Taiwan Semiconductor Corporation
TSM260P02CX6 RFG

Taiwan Semiconductor Corporation

MOSFET P-CHANNEL 20V 6.5A SOT26

TSM260P02CX6 RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CHANNEL 20V 6.5A SOT26. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6.

Datasheet Request a Quote

In Stock: 3,495

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs26mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs19.5 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds1670 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.56W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-26
Package / CaseSOT-23-6
