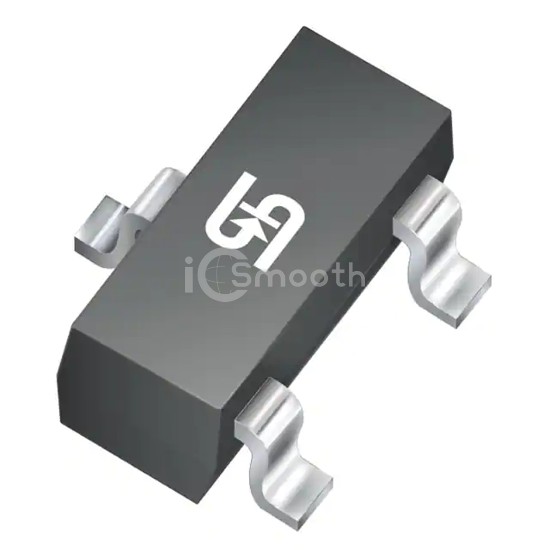

Name: TSM260P02CX RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM260P02CX RFG
Price: 1.21 USD
Availability: InStock

REF: TSM260P02CX RFG Taiwan Semiconductor Corporation

TSM260P02CX RFG

Taiwan Semiconductor Corporation

-20V, -6.5A, SINGLE P-CHANNEL PO

TSM260P02CX RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. -20V, -6.5A, SINGLE P-CHANNEL PO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), supplier device package SOT-23.

Datasheet Request a Quote

In Stock: 28

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 2.5V, 4.5V
Rds On (Max) @ Id, Vgs	26mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	19.5 nC @ 4.5 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	1670 pF @ 15 V
FET Feature	Standard
Power Dissipation (Max)	1.56W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	-
