Name: TSM2302CX RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM2302CX RFG
Price: 0.51 USD
Availability: InStock

REF: TSM2302CX RFG Taiwan Semiconductor Corporation

TSM2302CX RFG

Taiwan Semiconductor Corporation

MOSFET N-CHANNEL 20V 3.9A SOT23

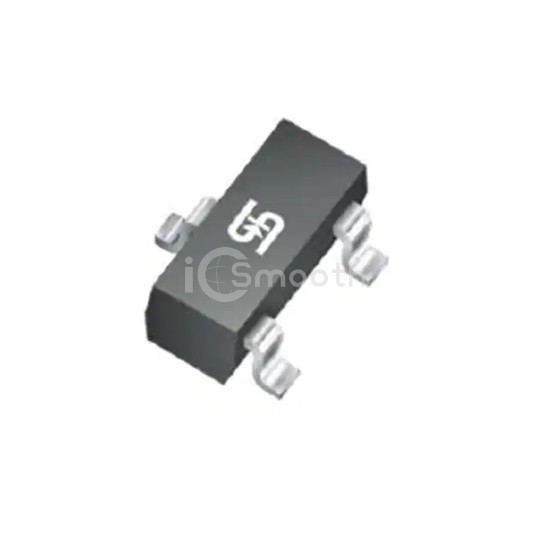

TSM2302CX RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 20V 3.9A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 9,395

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	65mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.8 nC @ 4.5 V

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	587 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
