Name: TSM2301ACX RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM2301ACX RFG
Price: 0.97 USD
Availability: InStock

REF: TSM2301ACX RFG Taiwan Semiconductor Corporation

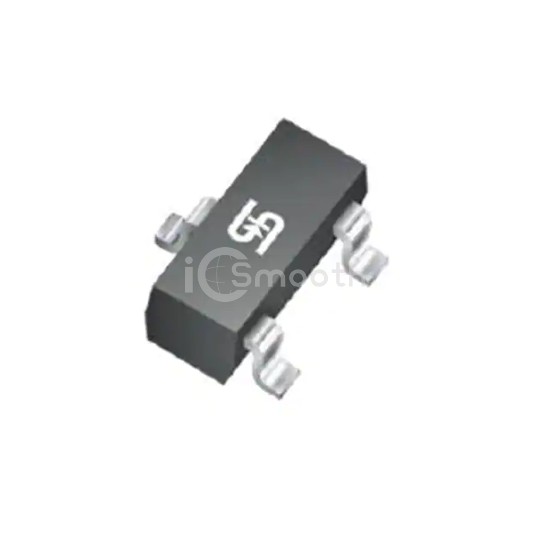

TSM2301ACX RFG

Taiwan Semiconductor Corporation

MOSFET P-CHANNEL 20V 2.8A SOT23

TSM2301ACX RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CHANNEL 20V 2.8A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 255,867

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	2.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	130mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.5 nC @ 4.5 V

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	480 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	700mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
