Name: TSM1NB60SCT B0G
Brand: Taiwan Semiconductor Corporation
SKU: TSM1NB60SCT B0G
Availability: InStock

REF: TSM1NB60SCT B0G Taiwan Semiconductor Corporation

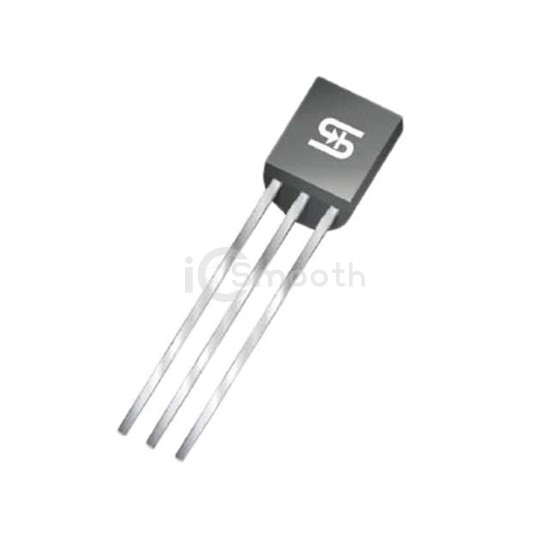

TSM1NB60SCT B0G

Taiwan Semiconductor Corporation

MOSFET N-CH 600V 500MA TO92

TSM1NB60SCT B0G is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 600V 500MA TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA).

Datasheet Request a Quote

In Stock: 5,881

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	500mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10Ohm @ 250mA, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.1 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	138 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-92
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
