Name: TSM1N45DCS RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM1N45DCS RLG
Availability: InStock

REF: TSM1N45DCS RLG Taiwan Semiconductor Corporation

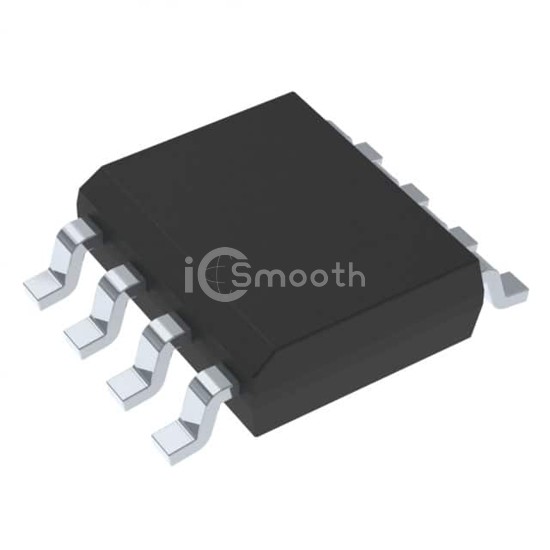

TSM1N45DCS RLG

MOSFET N-CH 450V 500MA 8SOP

TSM1N45DCS RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 450V 500MA 8SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,214

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	450 V
Current - Continuous Drain (Id) @ 25°C	500mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.25Ohm @ 250mA, 10V
Vgs(th) (Max) @ Id	4.9V @ 250mA
Gate Charge (Qg) (Max) @ Vgs	6.5 nC @ 10 V

Vgs (Max)	±50V
Input Capacitance (Ciss) (Max) @ Vds	185 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	900mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
