Name: TSM1N45CT A3G
Brand: Taiwan Semiconductor Corporation
SKU: TSM1N45CT A3G
Availability: InStock

REF: TSM1N45CT A3G Taiwan Semiconductor Corporation

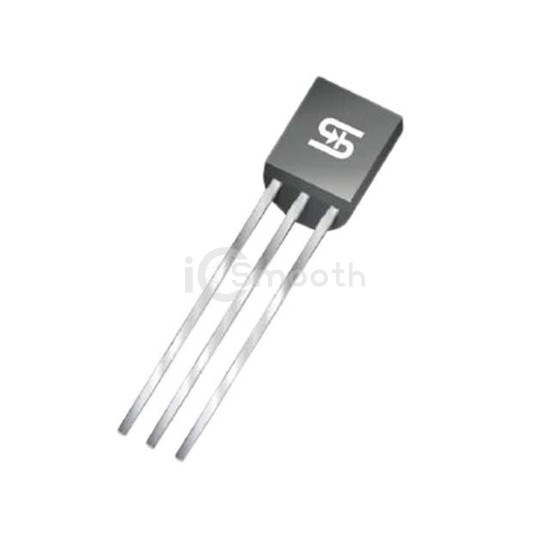

TSM1N45CT A3G

MOSFET N-CH 450V 500MA TO92

TSM1N45CT A3G is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 450V 500MA TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA) Formed Leads.

Datasheet Request a Quote

In Stock: 9,397

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	450 V
Current - Continuous Drain (Id) @ 25°C	500mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	4.25Ohm @ 250mA, 10V
Vgs(th) (Max) @ Id	4.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.5 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	235 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-92
Package / Case	TO-226-3, TO-92-3 (TO-226AA) Formed Leads
