Name: TSM150P03PQ33 RGG
Brand: Taiwan Semiconductor Corporation
SKU: TSM150P03PQ33 RGG
Price: 0.78 USD
Availability: InStock

REF: TSM150P03PQ33 RGG Taiwan Semiconductor Corporation

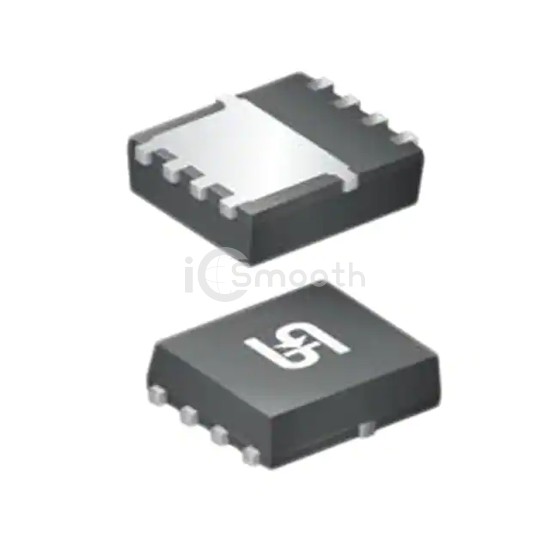

TSM150P03PQ33 RGG

Taiwan Semiconductor Corporation

MOSFET P-CH 30V 36A 8PDFN

TSM150P03PQ33 RGG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CH 30V 36A 8PDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 4,010

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	15mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	29.3 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1829 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	27.8W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PDFN (3.1x3.1)
Package / Case	8-PowerWDFN
