Name: TSM085P03CS RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM085P03CS RLG
Price: 2.13 USD
Availability: InStock

REF: TSM085P03CS RLG Taiwan Semiconductor Corporation

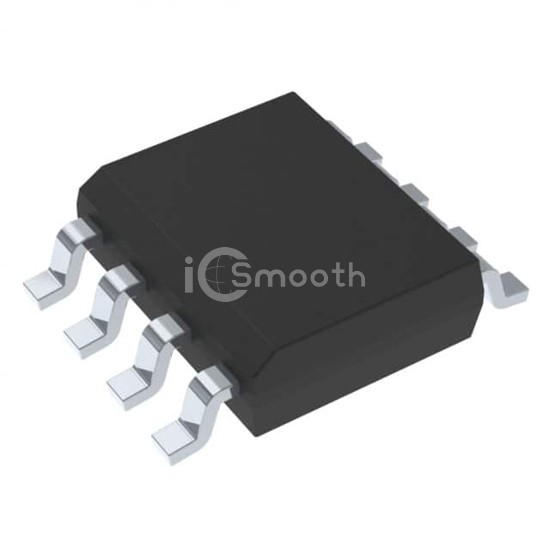

TSM085P03CS RLG

Taiwan Semiconductor Corporation

MOSFET P-CHANNEL 30V 34A 8SOP

TSM085P03CS RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET P-CHANNEL 30V 34A 8SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 1,327

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.5mOhm @ 13A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	56 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3216 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	14W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
