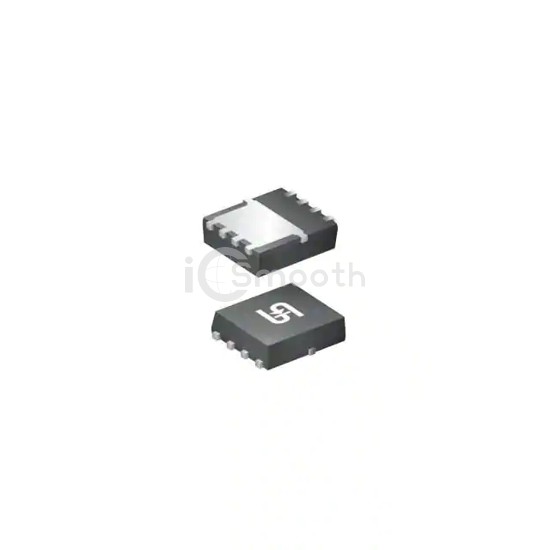

Name: TSM070NH04CV RGG
Brand: Taiwan Semiconductor Corporation
SKU: TSM070NH04CV RGG
Price: 2.36 USD
Availability: InStock

REF: TSM070NH04CV RGG Taiwan Semiconductor Corporation

TSM070NH04CV RGG

Taiwan Semiconductor Corporation

40V, 54A, SINGLE N-CHANNEL POWER

TSM070NH04CV RGG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. 40V, 54A, SINGLE N-CHANNEL POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 2,828

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	14A (Ta), 54A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7V, 10V
Rds On (Max) @ Id, Vgs	7mOhm @ 27A, 10V
Vgs(th) (Max) @ Id	3.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1233 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	36W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PDFN (3.1x3.1)
Package / Case	8-PowerWDFN
