Name: TSM05N03CW RPG
Brand: Taiwan Semiconductor Corporation
SKU: TSM05N03CW RPG
Price: 0.57 USD
Availability: InStock

REF: TSM05N03CW RPG Taiwan Semiconductor Corporation

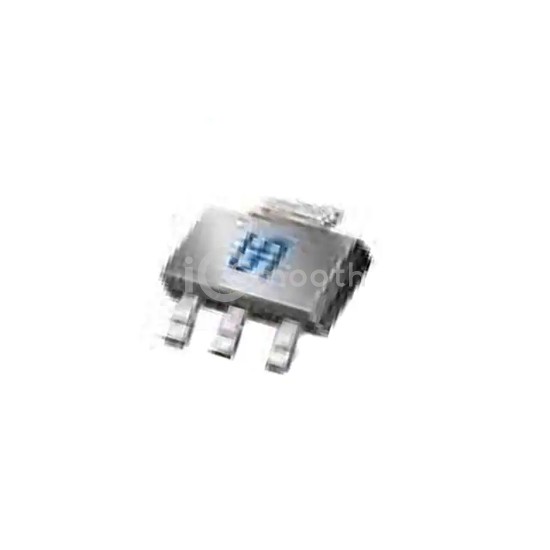

TSM05N03CW RPG

Taiwan Semiconductor Corporation

MOSFET N-CHANNEL 30V 5A SOT223

TSM05N03CW RPG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 30V 5A SOT223. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 5,601

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	60mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	555 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
