TSM042N03CS RLG

In Stock: 8,586

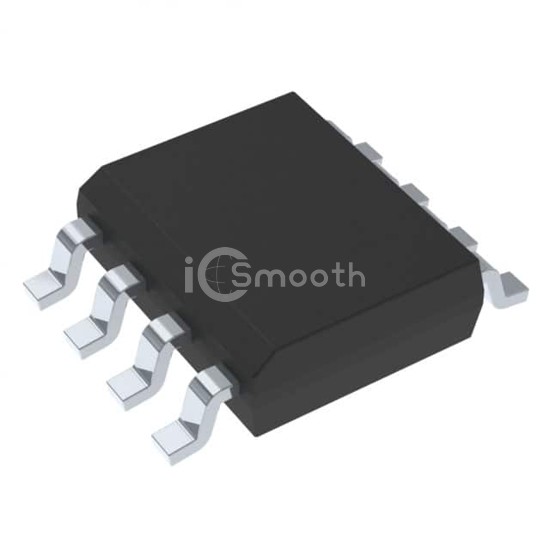

TSM042N03CS RLG - Taiwan Semiconductor Corporation - Transistors - FETs, MOSFETs - Single
REF: TSM042N03CS RLG Taiwan Semiconductor Corporation
TSM042N03CS RLG

Taiwan Semiconductor Corporation

MOSFET N-CHANNEL 30V 30A 8SOP

TSM042N03CS RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 30V 30A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 8,586

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.2mOhm @ 12A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 4.5 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2200 pF @ 25 V
FET Feature-
Power Dissipation (Max)7W (Tc)
Operating Temperature175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-SOP
Package / Case8-SOIC (0.154", 3.90mm Width)
