Name: TSM032NH04LCR RLG
Brand: Taiwan Semiconductor Corporation
SKU: TSM032NH04LCR RLG
Price: 4.01 USD
Availability: InStock

REF: TSM032NH04LCR RLG Taiwan Semiconductor Corporation

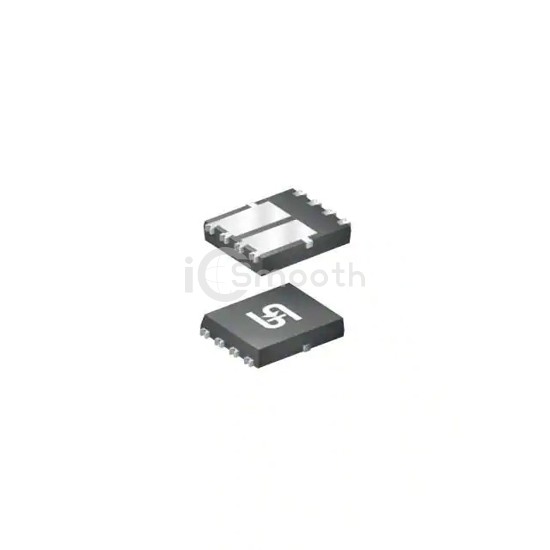

TSM032NH04LCR RLG

Taiwan Semiconductor Corporation

40V, 81A, SINGLE N-CHANNEL POWER

TSM032NH04LCR RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. 40V, 81A, SINGLE N-CHANNEL POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Datasheet Request a Quote

In Stock: 5,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	25A (Ta), 81A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	3.2mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V

Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	3007 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	115W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PDFNU (5x6)
Package / Case	8-PowerTDFN
