Name: TQM025NB04CR RLG
Brand: Taiwan Semiconductor Corporation
SKU: TQM025NB04CR RLG
Price: 6.38 USD
Availability: InStock

REF: TQM025NB04CR RLG Taiwan Semiconductor Corporation

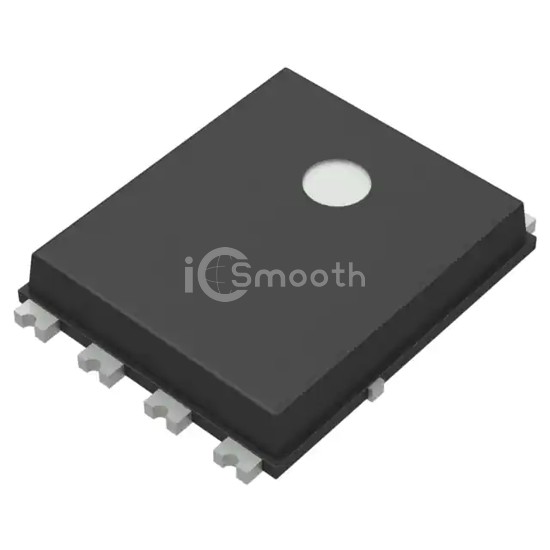

TQM025NB04CR RLG

Taiwan Semiconductor Corporation

MOSFET N-CH 40V 24A/157A 8PDFNU

TQM025NB04CR RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 40V 24A/157A 8PDFNU. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.

Request a Quote

In Stock: 1,091

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	24A (Ta), 157A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7V, 10V
Rds On (Max) @ Id, Vgs	2.5mOhm @ 24A, 10V
Vgs(th) (Max) @ Id	3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	118 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6670 pF @ 20 V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 136W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Supplier Device Package	8-PDFNU (5x6)
Package / Case	8-PowerTDFN
