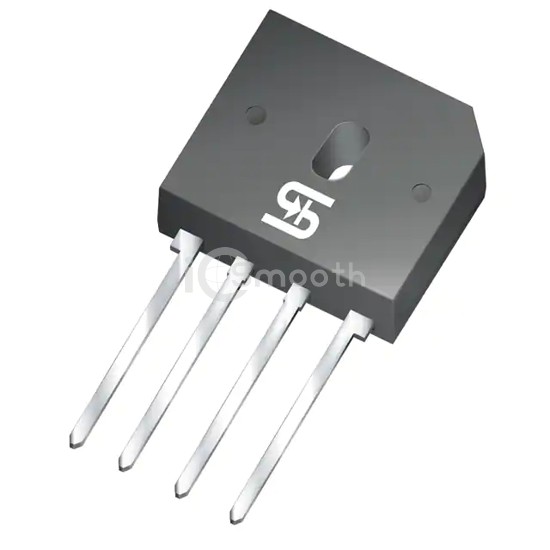

Name: GBU1506
Brand: Taiwan Semiconductor Corporation
SKU: GBU1506
Price: 1.57 USD
Availability: InStock

REF: GBU1506 Taiwan Semiconductor Corporation

GBU1506

Taiwan Semiconductor Corporation

15A, 800V, STANDARD BRIDGE RECTI

GBU1506 is a Diodes - Bridge Rectifiers manufactured by Taiwan Semiconductor Corporation. 15A, 800V, STANDARD BRIDGE RECTI. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case 4-ESIP, GBU.

Datasheet Request a Quote

In Stock: 4,956

Tiered Pricing USD

1+ $1.5700 —

20+ $0.8720 -44%

100+ $0.6612 -58%

500+ $0.5195 -67%

1,000+ $0.4739 -70%

2,000+ $0.4355 -72%

5,000+ $0.3940 -75%

10,000+ $0.3749 -76% BEST

Specifications

11 parameters

Product Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800 V
Current - Average Rectified (Io)	15 A
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 15 A

Current - Reverse Leakage @ Vr	5 µA @ 800 V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-ESIP, GBU
Supplier Device Package	GBU
