Name: BSS84W
Brand: Taiwan Semiconductor Corporation
SKU: BSS84W
Price: 0.49 USD
Availability: InStock

REF: BSS84W Taiwan Semiconductor Corporation

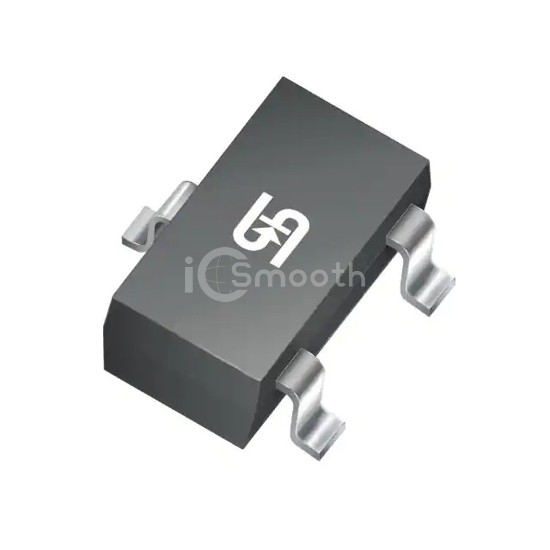

BSS84W

Taiwan Semiconductor Corporation

-60, -0.14, SINGLE P-CHANNEL

BSS84W is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. -60, -0.14, SINGLE P-CHANNEL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 6,685

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	140mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8Ohm @ 140mA, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.9 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	37 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	298mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-323
Package / Case	SC-70, SOT-323
