Name: BSS138 RFG
Brand: Taiwan Semiconductor Corporation
SKU: BSS138 RFG
Price: 0.39 USD
Availability: InStock

REF: BSS138 RFG Taiwan Semiconductor Corporation

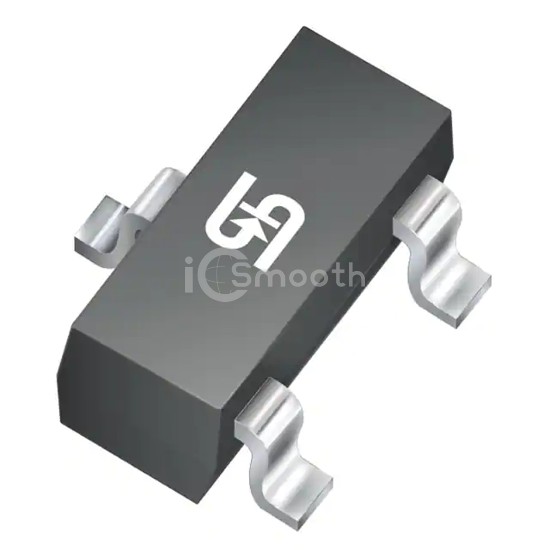

BSS138 RFG

Taiwan Semiconductor Corporation

50V, 0.26A, SINGLE N-CHANNEL POW

BSS138 RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. 50V, 0.26A, SINGLE N-CHANNEL POW. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Datasheet Request a Quote

In Stock: 3,421

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	50 V
Current - Continuous Drain (Id) @ 25°C	260mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.5Ohm @ 260mA, 10V
Vgs(th) (Max) @ Id	1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	32 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	357mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
