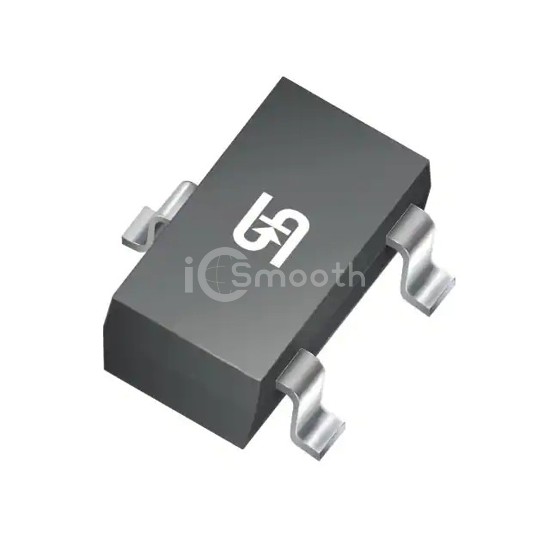

Name: BSS123W
Brand: Taiwan Semiconductor Corporation
SKU: BSS123W
Price: 0.46 USD
Availability: InStock

REF: BSS123W Taiwan Semiconductor Corporation

BSS123W

Taiwan Semiconductor Corporation

100V, 0.16A, SINGLE N-CHANNEL PO

BSS123W is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. 100V, 0.16A, SINGLE N-CHANNEL PO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.

Datasheet Request a Quote

In Stock: 3,065

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	160mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5Ohm @ 160mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	30 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	298mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-323
Package / Case	SC-70, SOT-323
