Name: VPS2535HTR
Brand: STMicroelectronics
SKU: VPS2535HTR
Availability: InStock

REF: VPS2535HTR STMicroelectronics

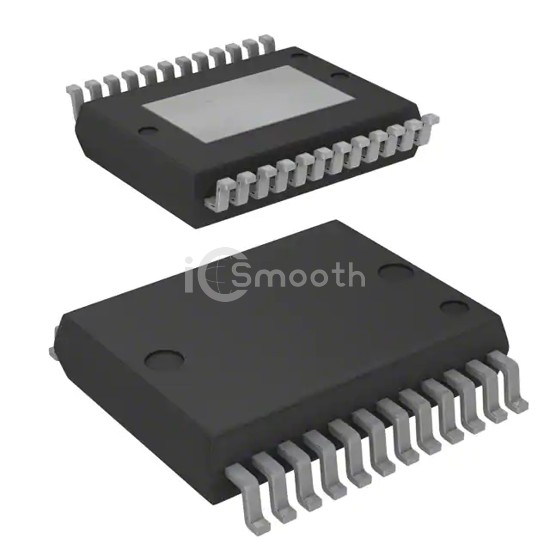

VPS2535HTR

IC PWR SWTCH N-CHAN 1:1 PWRSSO24

VPS2535HTR is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR SWTCH N-CHAN 1:1 PWRSSO24. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 24-PowerBSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 6,690

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	8V ~ 36V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	30A
Rds On (Typ)	35mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerSSO-24
Package / Case	24-PowerBSOP (0.295", 7.50mm Width)
