Name: VNQ830PTR-E
Brand: STMicroelectronics
SKU: VNQ830PTR-E
Price: 2.72 USD
Availability: InStock

REF: VNQ830PTR-E STMicroelectronics

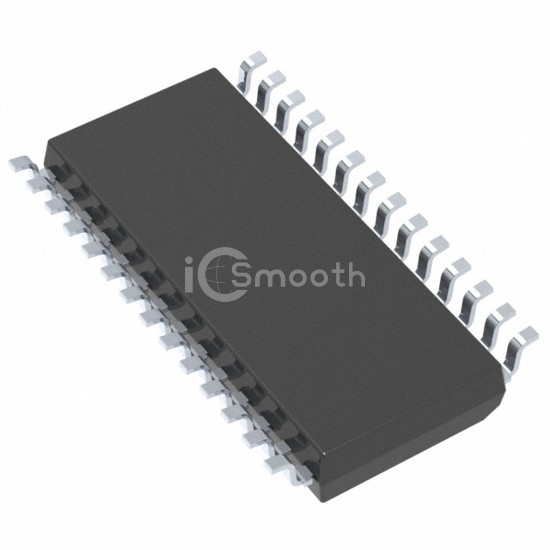

VNQ830PTR-E

IC PWR DRIVER N-CHANNEL 1:1 28SO

VNQ830PTR-E is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHANNEL 1:1 28SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 9,491

Tiered Pricing USD

1,000+ $2.7249 —

2,000+ $2.6637 -2%

3,000+ $2.6330 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	4
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	5.5V ~ 36V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	6A
Rds On (Typ)	65mOhm (Max)
Input Type	Non-Inverting
Features	Auto Restart, Status Flag
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	28-SO
Package / Case	28-SOIC (0.295", 7.50mm Width)
