Name: VNN3NV04PTR-E
Brand: STMicroelectronics
SKU: VNN3NV04PTR-E
Price: 2.00 USD
Availability: InStock

REF: VNN3NV04PTR-E STMicroelectronics

VNN3NV04PTR-E

STMicroelectronics

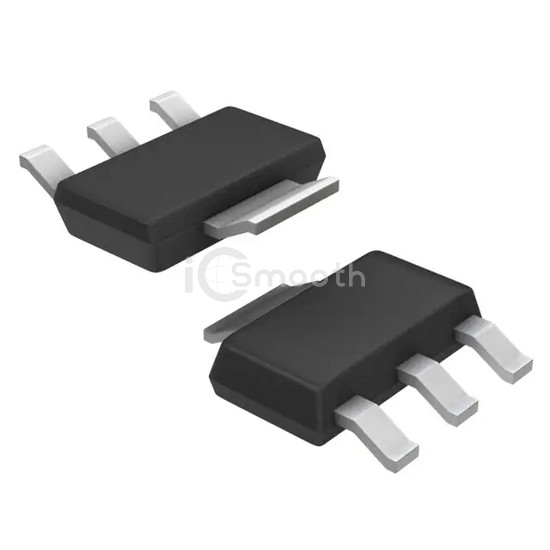

IC PWR DRIVER N-CHAN 1:1 SOT223

VNN3NV04PTR-E is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHAN 1:1 SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 1,699

Tiered Pricing USD

1+ $2.0000 —

10+ $1.2790 -36%

100+ $0.8639 -57%

500+ $0.6861 -66% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	Low Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	36V (Max)
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	3.5A
Rds On (Typ)	120mOhm (Max)
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
