Name: VND7020AJTR
Brand: STMicroelectronics
SKU: VND7020AJTR
Price: 2.94 USD
Availability: InStock

REF: VND7020AJTR STMicroelectronics

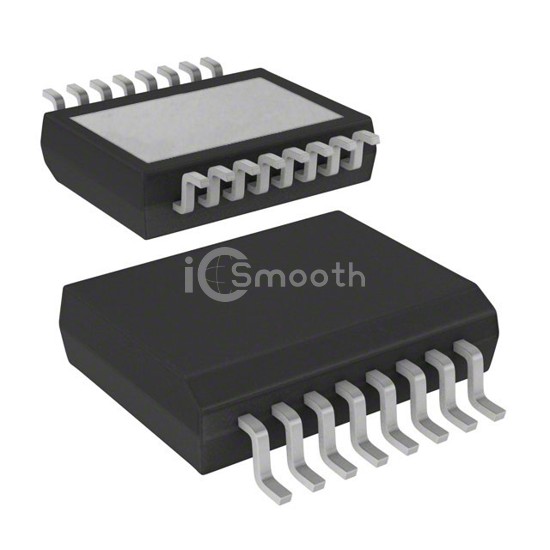

VND7020AJTR

IC PWR DRVR N-CHAN 1:1 PWRSSO16

VND7020AJTR is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRVR N-CHAN 1:1 PWRSSO16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 16-PowerLFSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,808

Tiered Pricing USD

1+ $2.9400 —

10+ $2.2000 -25%

25+ $2.0148 -31%

100+ $1.8107 -38%

250+ $1.7134 -42%

500+ $1.6548 -44%

1,000+ $1.6065 -45% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	2
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4V ~ 28V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	45A
Rds On (Typ)	22mOhm
Input Type	Non-Inverting
Features	Auto Restart, Status Flag
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerSSO-16
Package / Case	16-PowerLFSOP (0.154", 3.90mm Width)
