Name: VN920DB5-E
Brand: STMicroelectronics
SKU: VN920DB5-E
Availability: InStock

REF: VN920DB5-E STMicroelectronics

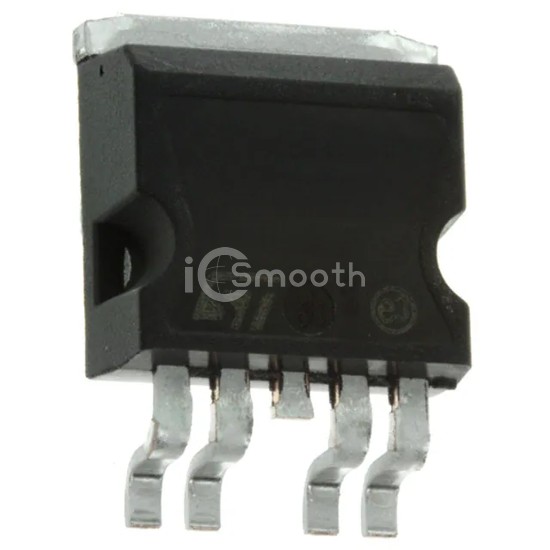

VN920DB5-E

IC PWR SSR HIGH SIDE SGL P2PAK

VN920DB5-E is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR SSR HIGH SIDE SGL P2PAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case P²PAK (4 Leads + Tab).

Datasheet Request a Quote

In Stock: 1,033

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	5.5V ~ 36V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	30A
Rds On (Typ)	18mOhm (Max)
Input Type	Non-Inverting
Features	Auto Restart
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	P2PAK
Package / Case	P²PAK (4 Leads + Tab)
