Name: VN820B5TR-E
Brand: STMicroelectronics
SKU: VN820B5TR-E
Price: 3.03 USD
Availability: InStock

REF: VN820B5TR-E STMicroelectronics

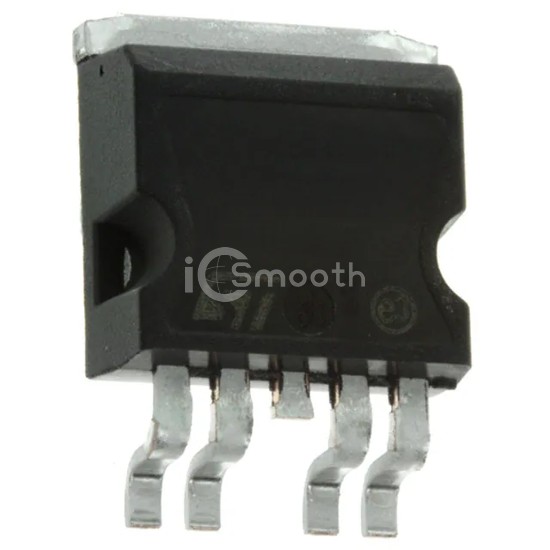

VN820B5TR-E

IC PWR DRIVER N-CHAN 1:1 P2PAK

VN820B5TR-E is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHAN 1:1 P2PAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case P²PAK (4 Leads + Tab).

Datasheet Request a Quote

In Stock: 7,526

Tiered Pricing USD

1+ $3.0300 —

10+ $2.2700 -25%

25+ $2.0792 -31%

100+ $1.8697 -38%

250+ $1.7698 -42%

500+ $1.7096 -44% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	5.5V ~ 36V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	9A
Rds On (Typ)	40mOhm (Max)
Input Type	Non-Inverting
Features	Auto Restart, Status Flag
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	P2PAK
Package / Case	P²PAK (4 Leads + Tab)
