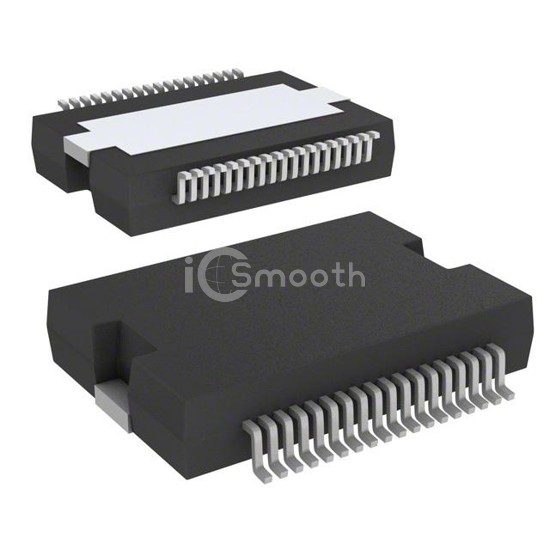

Name: VN808SR
Brand: STMicroelectronics
SKU: VN808SR
Price: 6.46 USD
Availability: InStock

REF: VN808SR STMicroelectronics

VN808SR

IC PWR DRIVER N-CHAN 1:1 PWRSO36

VN808SR is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHAN 1:1 PWRSO36. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 36-PowerBSSOP (0.433", 11.00mm Width).

Datasheet Request a Quote

In Stock: 4,263

Specifications

18 parameters

Product Status	Obsolete
Switch Type	General Purpose
Number of Outputs	8
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	10.5V ~ 45V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	700mA
Rds On (Typ)	150mOhm
Input Type	Non-Inverting
Features	Auto Restart, Status Flag
Fault Protection	Current Limiting (Fixed), Over Temperature
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerSO-36, Bottom Pad
Package / Case	36-PowerBSSOP (0.433", 11.00mm Width)
