Name: VN7004CHTR
Brand: STMicroelectronics
SKU: VN7004CHTR
Price: 3.53 USD
Availability: InStock

REF: VN7004CHTR STMicroelectronics

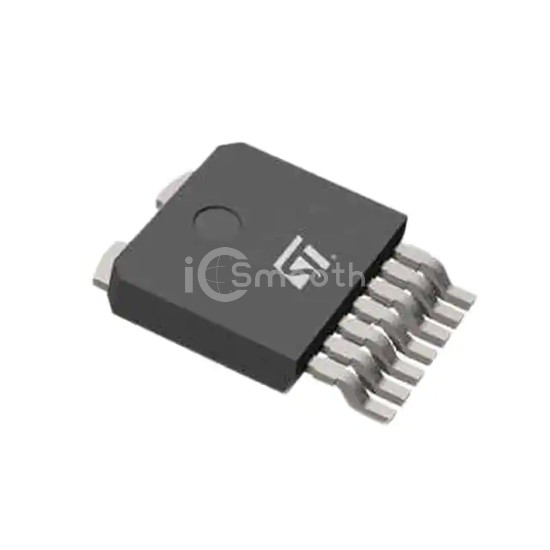

VN7004CHTR

IC PWR SWITCH N-CHAN 1:1 OCTAPAK

VN7004CHTR is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR SWITCH N-CHAN 1:1 OCTAPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case OctaPAK (7 leads + Tab).

Datasheet Request a Quote

In Stock: 2,830

Tiered Pricing USD

1+ $3.5300 —

10+ $2.6570 -25%

25+ $2.4388 -31%

100+ $2.1988 -38%

250+ $2.0844 -41%

500+ $2.0154 -43%

1,000+ $1.9586 -45% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	4V ~ 28V
Voltage - Supply (Vcc/Vdd)	Not Required

Current - Output (Max)	80A
Rds On (Typ)	4mOhm
Input Type	Non-Inverting
Features	-
Fault Protection	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	OctaPAK 7+1
Package / Case	OctaPAK (7 leads + Tab)
