Name: STY60NK30Z
Brand: STMicroelectronics
SKU: STY60NK30Z
Price: 12.73 USD
Availability: InStock

REF: STY60NK30Z STMicroelectronics

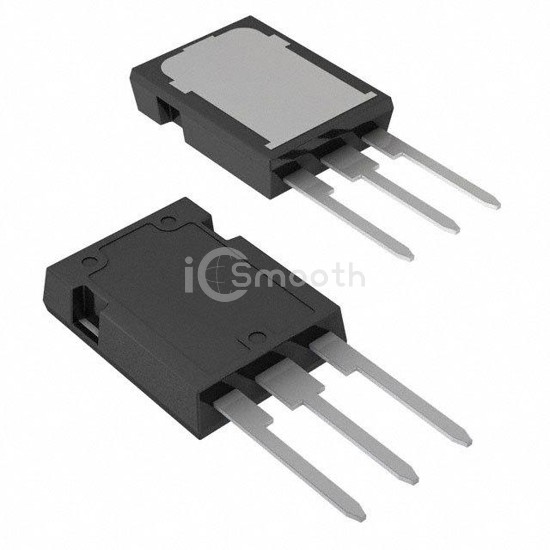

STY60NK30Z

MOSFET N-CH 300V 60A MAX247

STY60NK30Z is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 300V 60A MAX247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 413

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	300 V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	45mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	4.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	220 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	7200 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	450W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	MAX247™
Package / Case	TO-247-3
