Name: STY30NK90Z
Brand: STMicroelectronics
SKU: STY30NK90Z
Availability: InStock

REF: STY30NK90Z STMicroelectronics

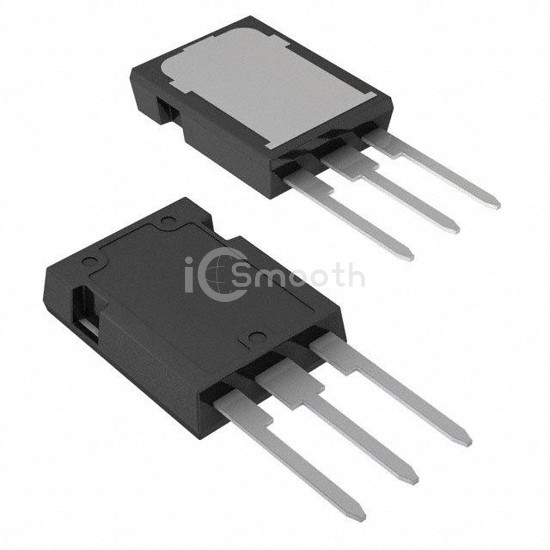

STY30NK90Z

MOSFET N-CH 900V 26A MAX247

STY30NK90Z is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 900V 26A MAX247. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 5,293

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	26A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	260mOhm @ 14A, 10V
Vgs(th) (Max) @ Id	4.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	490 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	12000 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	450W (Tc)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	MAX247™
Package / Case	TO-247-3
