Name: STY105NM50N
Brand: STMicroelectronics
SKU: STY105NM50N
Price: 26.97 USD
Availability: InStock

REF: STY105NM50N STMicroelectronics

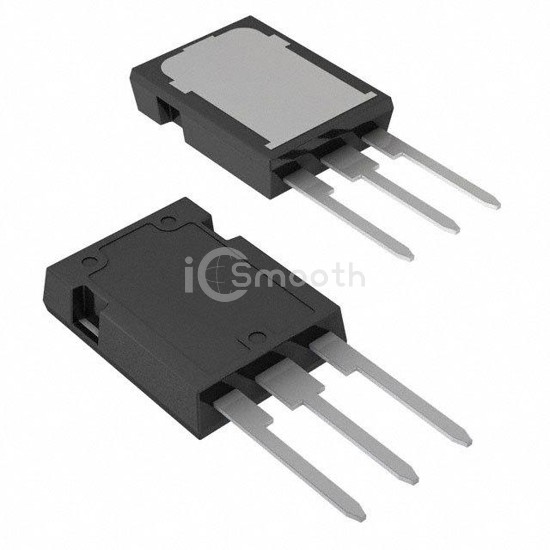

STY105NM50N

MOSFET N-CH 500V 110A MAX247

STY105NM50N is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 500V 110A MAX247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 3,888

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500 V
Current - Continuous Drain (Id) @ 25°C	110A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	22mOhm @ 52A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	326 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	9600 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	625W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	MAX247™
Package / Case	TO-247-3
