Name: STW88N65M5-4
Brand: STMicroelectronics
SKU: STW88N65M5-4
Availability: InStock

REF: STW88N65M5-4 STMicroelectronics

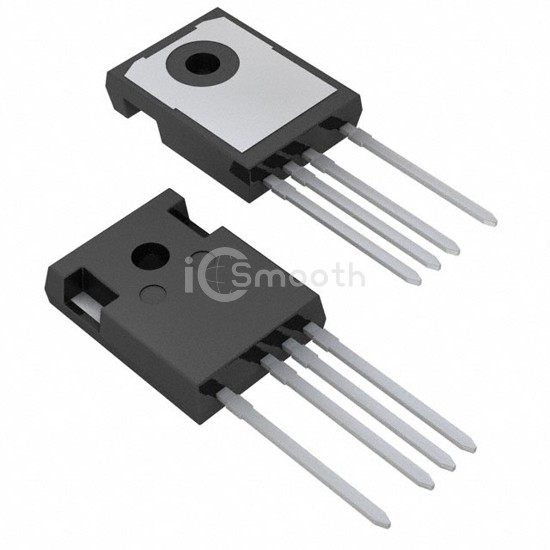

STW88N65M5-4

MOSFET N-CH 650V 84A TO247-4L

STW88N65M5-4 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 84A TO247-4L. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 9,260

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	84A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	29mOhm @ 42A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	204 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	8825 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	450W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
