Name: STW70N65DM6-4
Brand: STMicroelectronics
SKU: STW70N65DM6-4
Price: 11.33 USD
Availability: InStock

REF: STW70N65DM6-4 STMicroelectronics

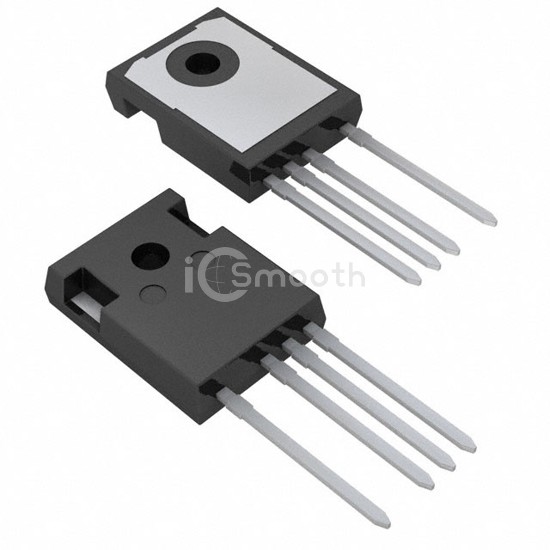

STW70N65DM6-4

STMicroelectronics

MOSFET N-CH 650V 68A TO247-4

STW70N65DM6-4 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 68A TO247-4. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 7,915

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	68A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	40mOhm @ 34A, 10V
Vgs(th) (Max) @ Id	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	125 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	4900 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	450W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
