Name: STW56N65M2-4
Brand: STMicroelectronics
SKU: STW56N65M2-4
Price: 7.55 USD
Availability: InStock

REF: STW56N65M2-4 STMicroelectronics

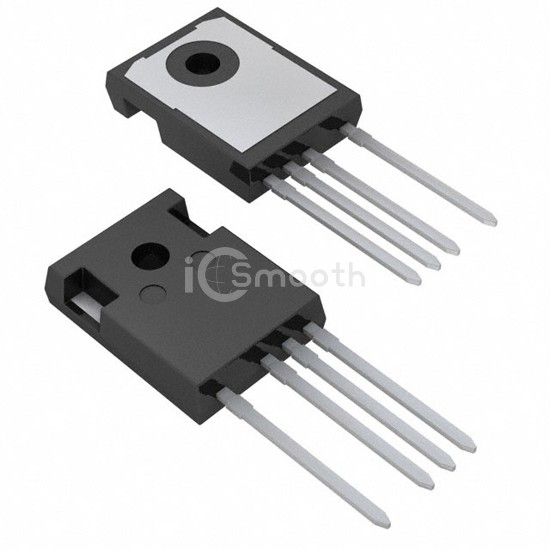

STW56N65M2-4

STMicroelectronics

MOSFET N-CH 650V 49A TO247-4L

STW56N65M2-4 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 49A TO247-4L. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 8,903

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	49A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	62mOhm @ 24.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	93 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	3900 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	358W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-4
Package / Case	TO-247-4
