STW56N60M2-4

In Stock: 555

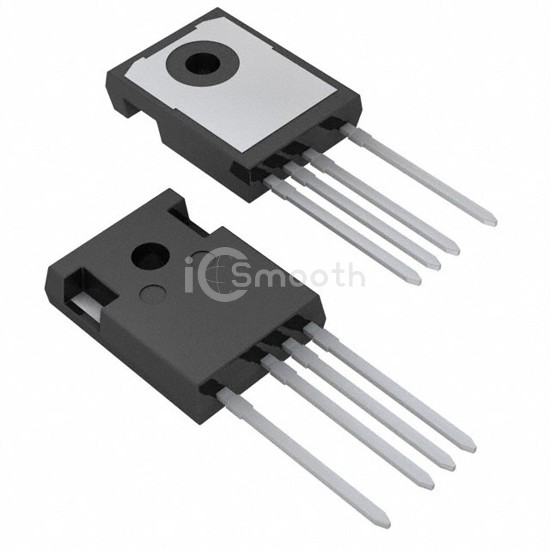

STW56N60M2-4 - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STW56N60M2-4 STMicroelectronics
STW56N60M2-4

STMicroelectronics

MOSFET N-CH 600V 52A TO247-4L

STW56N60M2-4 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 52A TO247-4L. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-4.

Datasheet Request a Quote

In Stock: 555

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C52A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs55mOhm @ 26A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs91 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds3750 pF @ 100 V
FET Feature-
Power Dissipation (Max)350W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247-4
Package / CaseTO-247-4
