Name: STW34NB20
Brand: STMicroelectronics
SKU: STW34NB20
Availability: InStock

REF: STW34NB20 STMicroelectronics

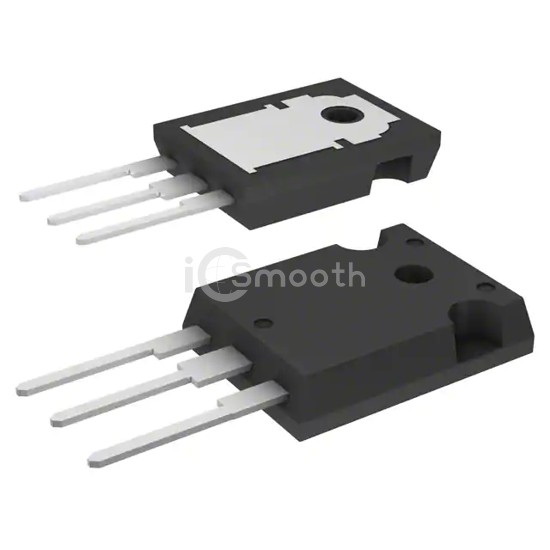

STW34NB20

MOSFET N-CH 200V 34A TO247-3

STW34NB20 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 200V 34A TO247-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 4,029

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	34A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	75mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	80 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	3300 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	180W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
