Name: STW20NM60FD
Brand: STMicroelectronics
SKU: STW20NM60FD
Price: 7.32 USD
Availability: InStock

REF: STW20NM60FD STMicroelectronics

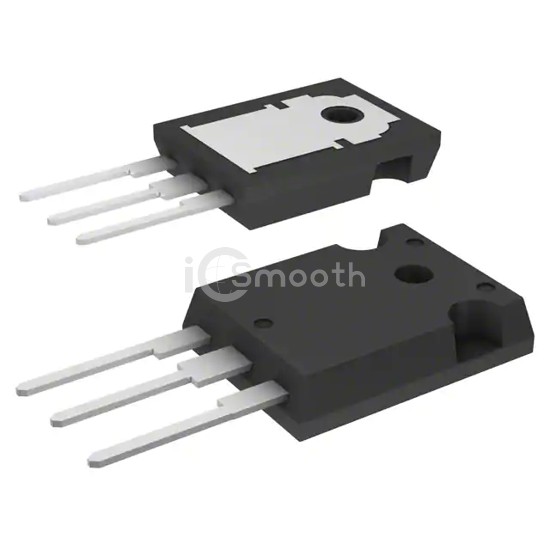

STW20NM60FD

MOSFET N-CH 600V 20A TO247-3

STW20NM60FD is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 20A TO247-3. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 2,190

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	290mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	37 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1300 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	214W (Tc)
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
