Name: STW16NK60Z
Brand: STMicroelectronics
SKU: STW16NK60Z
Availability: InStock

REF: STW16NK60Z STMicroelectronics

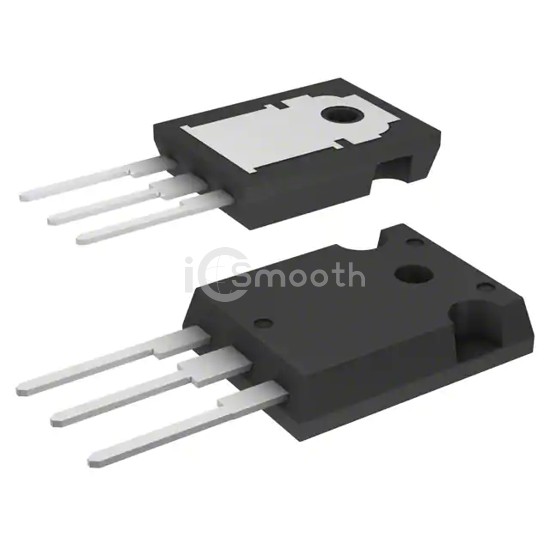

STW16NK60Z

MOSFET N-CH 600V 14A TO247-3

STW16NK60Z is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 14A TO247-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 7,058

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	420mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs	86 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2650 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	190W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3
Package / Case	TO-247-3
