Name: STU65N3LLH5
Brand: STMicroelectronics
SKU: STU65N3LLH5
Price: 1.07 USD
Availability: InStock

REF: STU65N3LLH5 STMicroelectronics

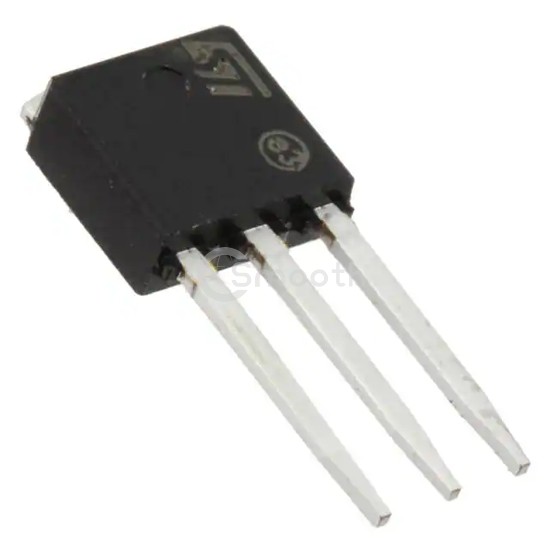

STU65N3LLH5

MOSFET N CH 30V 65A IPAK

STU65N3LLH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N CH 30V 65A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 536

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	65A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	7.3mOhm @ 32.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8 nC @ 4.5 V

Vgs (Max)	±22V
Input Capacitance (Ciss) (Max) @ Vds	1290 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
