Name: STU60N3LH5
Brand: STMicroelectronics
SKU: STU60N3LH5
Availability: InStock

REF: STU60N3LH5 STMicroelectronics

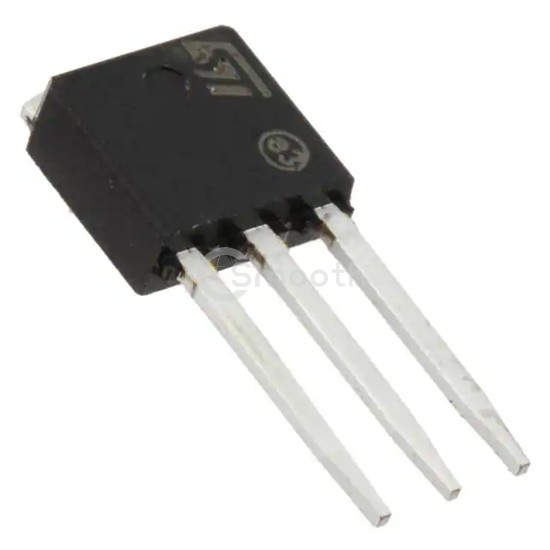

STU60N3LH5

MOSFET N-CH 30V 48A IPAK

STU60N3LH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 30V 48A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.

Datasheet Request a Quote

In Stock: 1,470

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	48A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	8.4mOhm @ 24A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.8 nC @ 5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1620 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	60W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I-PAK
Package / Case	TO-251-3 Short Leads, IPak, TO-251AA
