Name: STS7P4LLF6
Brand: STMicroelectronics
SKU: STS7P4LLF6
Price: 1.40 USD
Availability: InStock

REF: STS7P4LLF6 STMicroelectronics

STS7P4LLF6

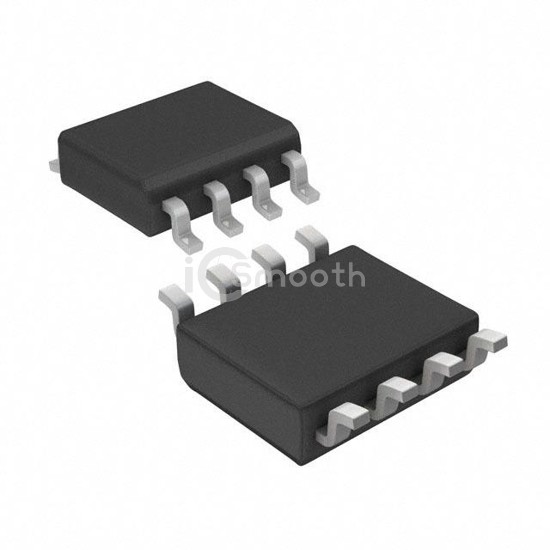

MOSFET P-CH 40V 7A POWER8-SO

STS7P4LLF6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET P-CH 40V 7A POWER8-SO. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,096

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	7A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	20.5mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id	1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs	22 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2850 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SO
Package / Case	8-SOIC (0.154", 3.90mm Width)
