Name: STP8N120K5
Brand: STMicroelectronics
SKU: STP8N120K5
Price: 7.51 USD
Availability: InStock

REF: STP8N120K5 STMicroelectronics

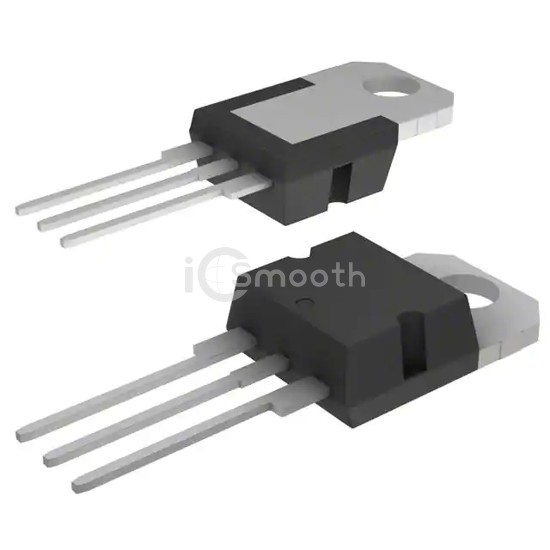

STP8N120K5

MOSFET N-CH 1200V 6A TO220

STP8N120K5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 1200V 6A TO220. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 2,109

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1200 V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	13.7 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	505 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	130W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
