Name: STO67N60DM6
Brand: STMicroelectronics
SKU: STO67N60DM6
Price: 8.34 USD
Availability: InStock

REF: STO67N60DM6 STMicroelectronics

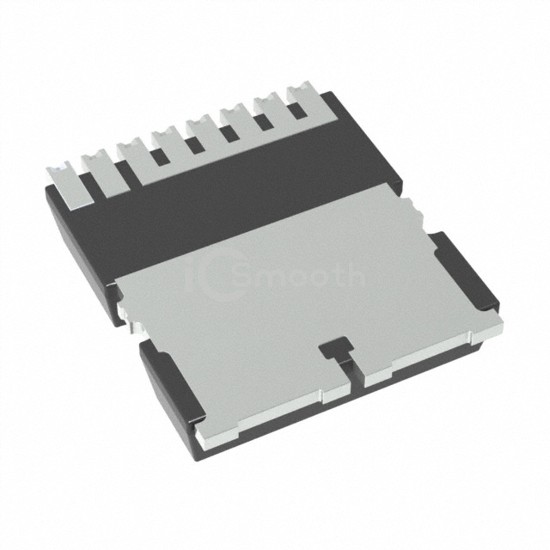

STO67N60DM6

MOSFET N-CH 600V 33A TOLL

STO67N60DM6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 33A TOLL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerSFN.

Request a Quote

In Stock: 1,227

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	33A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	59mOhm @ 23.75A, 10V
Vgs(th) (Max) @ Id	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	72.5 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	3400 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	150W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TOLL (HV)
Package / Case	8-PowerSFN
