Name: STN4NF20L
Brand: STMicroelectronics
SKU: STN4NF20L
Price: 0.87 USD
Availability: InStock

REF: STN4NF20L STMicroelectronics

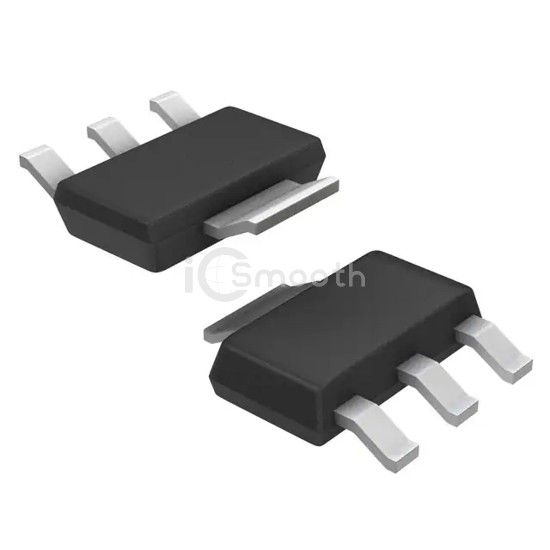

STN4NF20L

MOSFET N-CH 200V 1A SOT-223

STN4NF20L is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 200V 1A SOT-223. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 1,874

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	1.5Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.9 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	150 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.3W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
