Name: STN3P6F6
Brand: STMicroelectronics
SKU: STN3P6F6
Price: 1.00 USD
Availability: InStock

REF: STN3P6F6 STMicroelectronics

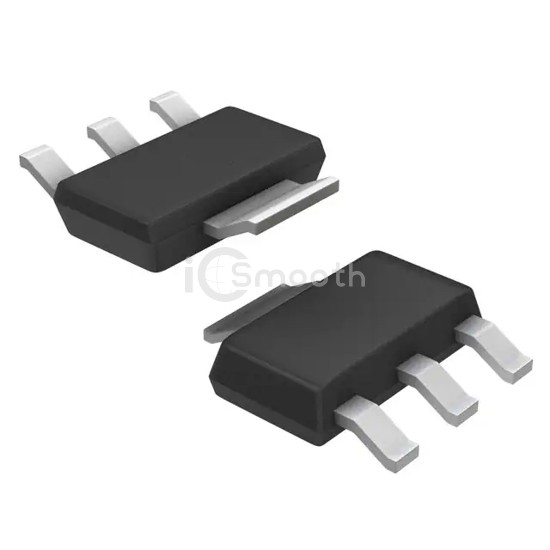

STN3P6F6

MOSFET P-CH 60V SOT223

STN3P6F6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET P-CH 60V SOT223. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-261-4, TO-261AA.

Datasheet Request a Quote

In Stock: 8,665

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	3A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	160mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6.4 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	340 pF @ 48 V
FET Feature	-
Power Dissipation (Max)	2.6W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-223
Package / Case	TO-261-4, TO-261AA
