STLD200N4F6AG

In Stock: 3,126

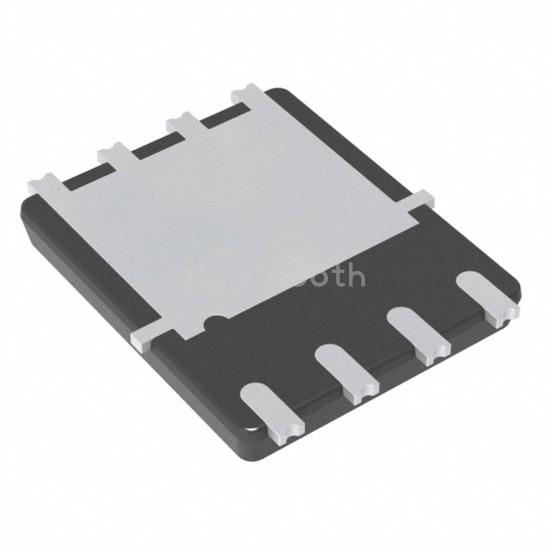

STLD200N4F6AG - STMicroelectronics - Transistors - FETs, MOSFETs - Single
REF: STLD200N4F6AG STMicroelectronics
STLD200N4F6AG

STMicroelectronics

MOSFET N-CH 40V 120A POWERFLAT

STLD200N4F6AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 40V 120A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Datasheet Request a Quote

In Stock: 3,126

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)6.5V, 10V
Rds On (Max) @ Id, Vgs1.5mOhm @ 75A, 10V
Vgs(th) (Max) @ Id4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs172 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds10700 pF @ 10 V
FET Feature-
Power Dissipation (Max)158W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerFlat™ (5x6) Dual Side
Package / Case8-PowerWDFN
