Name: STL8N65M5
Brand: STMicroelectronics
SKU: STL8N65M5
Availability: InStock

REF: STL8N65M5 STMicroelectronics

STL8N65M5

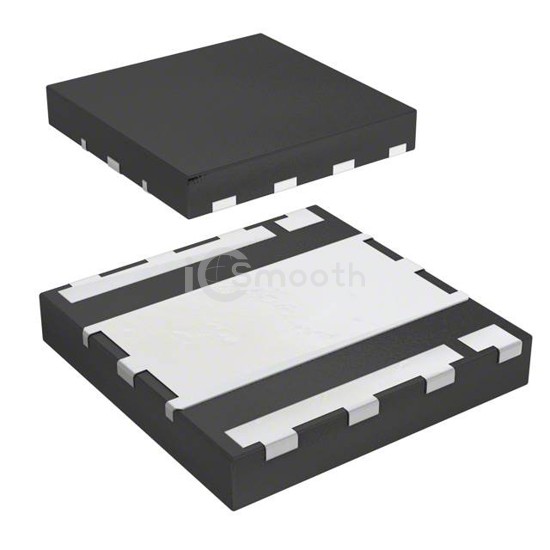

MOSFET N-CH 650V 7A POWERFLAT

STL8N65M5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 7A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 14-PowerVQFN.

Datasheet Request a Quote

In Stock: 7,995

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	1.4A (Ta), 7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	600mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	690 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 70W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFLAT™ (5x5)
Package / Case	14-PowerVQFN
