Name: STL7NM60N
Brand: STMicroelectronics
SKU: STL7NM60N
Availability: InStock

REF: STL7NM60N STMicroelectronics

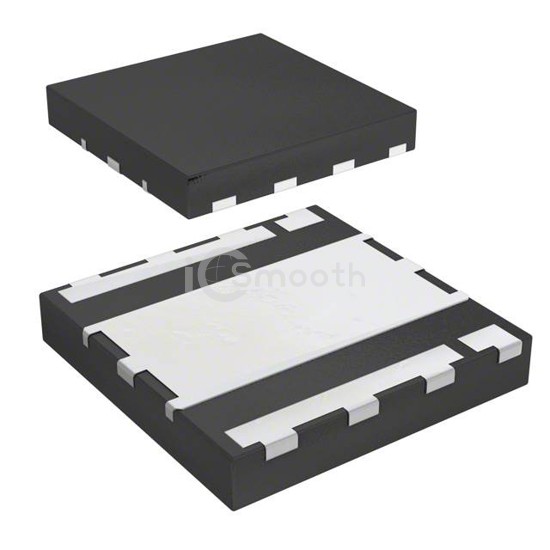

STL7NM60N

MOSFET N-CH 600V 5.8A 14PWRFLAT

STL7NM60N is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 600V 5.8A 14PWRFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 14-PowerVQFN.

Datasheet Request a Quote

In Stock: 1,372

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	5.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	900mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 10 V

Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	363 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	68W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	14-PowerFLAT™ (5x5)
Package / Case	14-PowerVQFN
