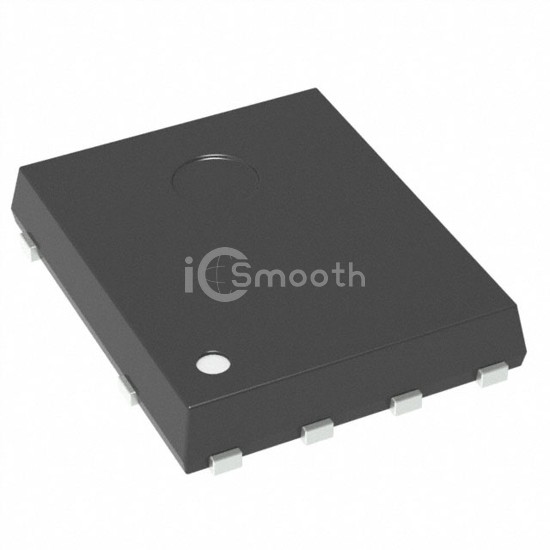

Name: STL7LN65K5AG
Brand: STMicroelectronics
SKU: STL7LN65K5AG
Price: 3.14 USD
Availability: InStock

REF: STL7LN65K5AG STMicroelectronics

STL7LN65K5AG

STMicroelectronics

MOSFET N-CH 650V 5A PWRFLAT VHV

STL7LN65K5AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 5A PWRFLAT VHV. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 1

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.5Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id	5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs	11.7 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	270 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	79W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6) VHV
Package / Case	8-PowerVDFN
